Engine
2-stroke single cylinder with electronically controlled valve system
Displacement
249,32cc
Bore x stroke
66,40 x 72 mm
Carburator
Keihin PWK 36 carburetor
Battery
BS 12V 140A Lithium Battery
Lubrification
2% mixture
Fuel
95-E10 unleaded gasoline
Cooling
Liquid with forced circulation
Start
Electric starter
Exhaust
Chromed steel exhaust header pipe – Aluminum silencer
Ignition system
DC – CDI ignition with digital advance
Transmission
6 speed – 520 O-ring chain
Clutch
Brembo hydraulic control, multi-disc in oil bath
Ignition
220 W alternator
Chassis
Semi-perimeter high-strength chrome-molybdenum steel
Tank
10.4 L capacity
Brakes
Hydraulic Brembo, 260 mm Ø (front) – 220 mm Ø (rear)
Front suspension
KYB 48 mm Ø fork – 300 mm stroke – closed cartridge technology – hydraulic setting + specific spring rate

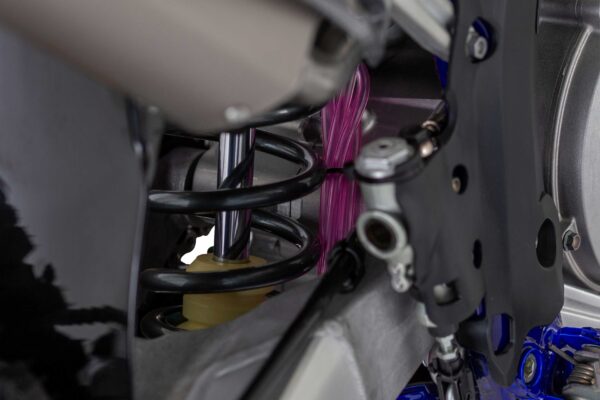

Rear Suspension
KYB 50 Ø18 mm shock absorber – 330 mm rear wheel travel – hydraulic + specific spring rate
Front wheel
Excel 1.60 x 21’’ black anodized rim and Michelin Enduro Medium tire

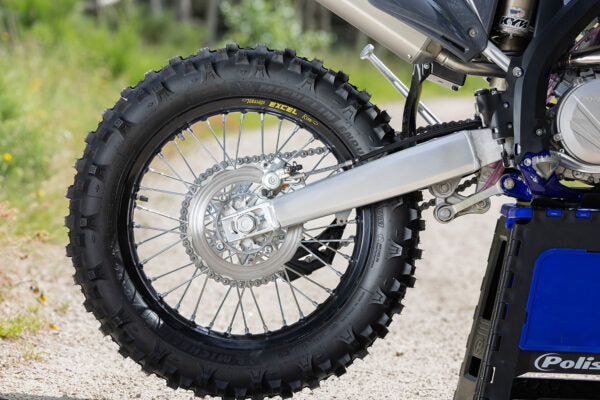

Rear wheel
Excel 2.15 x 18’’ black anodized rim and Michelin Enduro Medium tire
Wheel base
1480 mm (58.25 inches)
Ground clearance
355 mm (14 inches)
Seat base
950 mm (37.4 inches)
